Equipment specification
SN Item Parameter
1. The height of PCB board to be divided is 390mm * 2

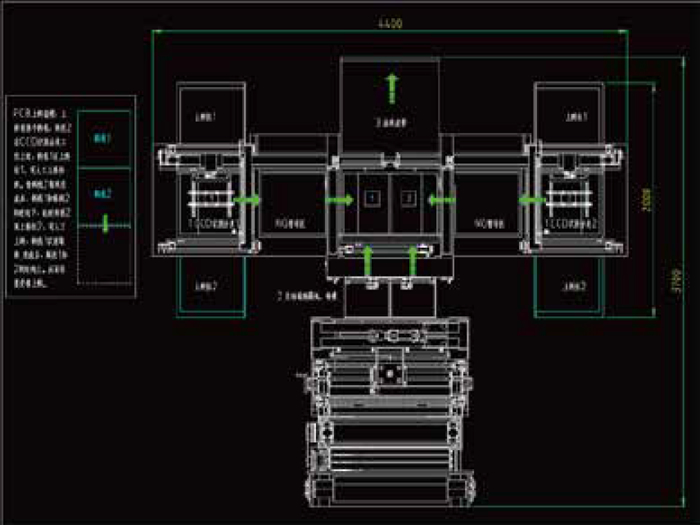

2. Site size and equipment specification: length * width * height
(Refer to the attachment) Spacer: L3611 * W4832 * H2115mm
Non-paper separation: L3611 * W3200 * H2115mm
3. The minimum sorting size is 80 * 60mm and the maximum is 500 * 500mm
4. Measure the plate thickness' 0.3~3.2mm
5 Efficiency sorting (capacity) efficiency: PCS/H separation 1500~2000 pieces/hour
No paper separation 3600~4000 pieces/hour
It will be adjusted according to the number of features
Efficiency (time) of replacing new material number within 5 minutes
6 Lens CCD quantity and resolution capacity '2 sets/set * 2,' 0.023mm/pixel
Service life 'more than 10 years
7 Recognition accuracy Minimum character width and height '0.08 * 0.06mm QR code 2 * 2mm
Maximum field of vision 50 * 70mm
8. Recognition ability QR code, cycle, character, etched character, oil cover character, figure, etc., with a false alarm rate of 99.9% and a false alarm rate of 0 1%
9 Automatic paper separation is optional * 2
10 Automatic weighing standard weight duplicate core * 2, discharge buffer section
11 Operation station 4-station feeding table (2 feeding and 2 feeding) manual plate setting, automatic and uninterrupted feeding
12. The counting capacity 1-50 can be set by itself, (the stacking height can be staggered, the maximum stacking height is 200 mm (4 stacks), and the material can also be discharged in a single stack
13 Working energy consumption power supply: 220 three-phase 3KW, gas source: 0.6~0.8Mpa (200L/min)
14 Application field: single-sided and double-sided board; Multi-layer PCB, HDI and other large size PCB, perforated plate, parallel plate at any two ends
15 Computer configuration host (i5-10400 8G 240SSD 2T mechanical hard disk), 24-inch Dell display screen, high-definition industrial camera 6 million pixels (including network cable power supply), high-definition industrial 2/3 FA 25mm lens, and 2 sets of light sources for use together. 4-way light source controller, Intel chip machine vision customized dedicated independent network card)
16 Working ambient temperature: 22-26 ℃; Humidity: 40-60% Working environment: no dust, no vibration, no corrosive gas
