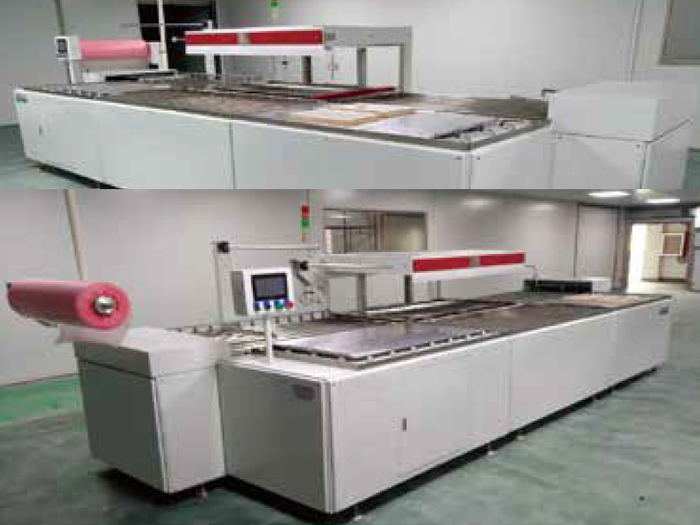

Main components of the equipment:
Feeding bull eye wheel working chamber, used for placing products and cylinder preparation workbench
There is a power roller and manipulator push plate device. The working bolt of the working tray bull eye wheel transits to the material level to be pushed, and then the manipulator pushes the working tray to the empty suction cup position
Instantaneous heating host and air forming part
There is a power discharge roller frame and a manipulator discharge device. The manipulator first pulls out the packaged finished products, and then transports them from the power roller to the ox eye wheel working platform
Discharging ox eye wheel worktable, which is used to cut packaged finished products or transition packaged finished products
The operator at the operation station only needs to move the working tray to the feeding power roller frame, and the equipment will automatically complete all the following work.
The sequence is: automatic feeding, turning to pushing, rubber film heating, staff space fitting, automatic discharging, automatic film breaking, and automatic transportation of finished products to the discharging platform.

Instantaneous heating host:
1. According to the original Taiwan packaging machine standard, the main machine and auxiliary machine are all welded with carbon steel structure, and the material is national standard 5 angle steel, which is firm, durable and never deformed
2. The outer cover metal plate of the main engine and auxiliary engine is formed by hot plate bending, and the surface is sprayed and baked after pickling and vulcanization. The surface coating will never fall off, and it is not easy to hang flowers. The machine is beautiful and generous.
3. The host is driven by 70 type worm gear reducer, the motor configuration is 380V/750W, the equipment runs accurately and in place, and the membrane frame rises and falls steadily without shaking
4. The air forming part of the body fitted film is composed of two 2200W high-pressure fan motors. The maximum flow rate is 380 I (m3/h), the maximum suction force is -- 260 1 (m/Bar), the air space time is short (6-10 seconds/time), the air space forming speed is fast, and the bonding is firm
5. The adhesive film hot cutter is thermostatically controlled. The cutting blade is made of brass and heated by a 220W hot plate. It is durable
Instead of the old film cutting method using the heating wire for instant heating, replace the heating wire frequently to avoid injustice
Movable plastic film press frame with safety protection device; Automatic hot cutting device and safety net are installed.
6. The film clamping frame is welded and ground by flat steel, and its surface is chrome plated. The frame is equipped with a thermal insulation film clamping device, which changes the traditional model. After a long time of use, the high temperature of the film clamping frame leads to the melting of the film and affects the evacuation effect.

Main engine hot box:
7. The external heat box of the main engine is made of 3MM carbon steel plate by bending and welding. The material of the internal heat box is 1.5MM 201 stainless steel body, which is internally reinforced and will not deform under high temperature for a long time
8. The host machine uses carbon fiber heating tubes. Carbon fiber heating tubes are high-tech products different from traditional heating tubes such as metal wire and halogen. They have a long service life (more than 6000H, continuous power on). During frequent startup, shutdown and long-term continuous work, the heating body is free of oxidation and breakdown, and the heating light color is uniform. The electric heating conversion efficiency is high (more than 95%), the far-infrared stack radiation (the wavelength is close to the human absorption wavelength), health and environmental protection. The product is recognized as the third generation electric heating tube at home and abroad (in line with GB/T241993 Basic Environmental Test Procedures for Electrical and Electronic Products);
The 970120 model has 42 heating tubes in total, and the instantaneous power is about 45KW. Arranged in a special order to ensure fast temperature rise and uniform heating of the entire adhesive film. Under the premise of the same output, the electricity consumption is 40% - 50% of the normal heat models, saving energy and reducing consumption
10. PE film heating and forming control mode: adopt imported photoelectric cell automatic control or manual control. The rubber film heating is controlled by infrared money electric eye. The electric eye detects the plastic film heating misuse timer. It can reduce the heating time according to the accumulated residual temperature preheating condition of the heat box, save energy and improve efficiency.
11. The inner and outer heat boxes are equipped with heat dissipation mechanisms to prevent the accumulation of residual heat from affecting the packaging effect. Two stage heating of hot box, continuous heating when the personnel are free, and the time is adjustable; It can keep the temperature of the packaging bag, so as to increase the packaging effect.
With a power roller and a manipulator push plate device, the ox eye wheel of the working tray works first and transits to the position to be pushed, and then the manipulator pushes the working tray to the empty suction cup position
1. The powered feeding roller smoothly conveys the working tray to the pushing manipulator, the motor power is 380V/120W, and the transmission speed is controlled by the frequency converter. The transmission speed is controlled from fast to slow to ensure that the circuit board is stable when entering
2. The pushing manipulator is mechanically driven by a 70 type reducer and a five part chain, controlled by a travel switch, with stable transportation and accurate positioning. The speed is adjustable by three sections of frequency conversion, and the motor power is 750W.

There is a power discharge roller frame and a manipulator discharge device. The manipulator first pulls out the packaged finished products, automatically cuts off the adhesive film, and then transports them from the power roller to the ox eye wheel working tomb
1. The discharging (pulling) manipulator is mechanically driven by a 70 type reducer and a five part chain, controlled by a travel switch, with stable transportation and accurate positioning. The motor power is 750W.
2. Discharging fishing adopts 12MM iron plate laser cutting -- secondary molding, and the surface is chrome plated
3. Discharge power drum diameter: 60MM, drum surface: stainless steel, constant speed control, motor power: 220V/200W

Ox eye wheel worktable 1, discharge worktable is of steel structure, with ox eye wheel on it, universal transmission, saving time and labor
2. The working tray is made of 4MM aluminum plate, 1225 * 705MM in size, with 3 pieces of black as standard, which can be operated circularly to improve the output and save time and effort
3. All auxiliary machine covers are treated with vulcanization and powder spraying, and the appearance of the equipment is natural.

Equipment electrical control part:
1. The whole machine is controlled by PLC with an external touch screen, which is simple, convenient and clear.
2. The electrical control connection between the main engine and the auxiliary engine is a special fast strengthening aviation socket, which is convenient and reliable. The power supply of the whole machine is configured with three-phase/380V/50KW (instantaneous heating), without external air source.
